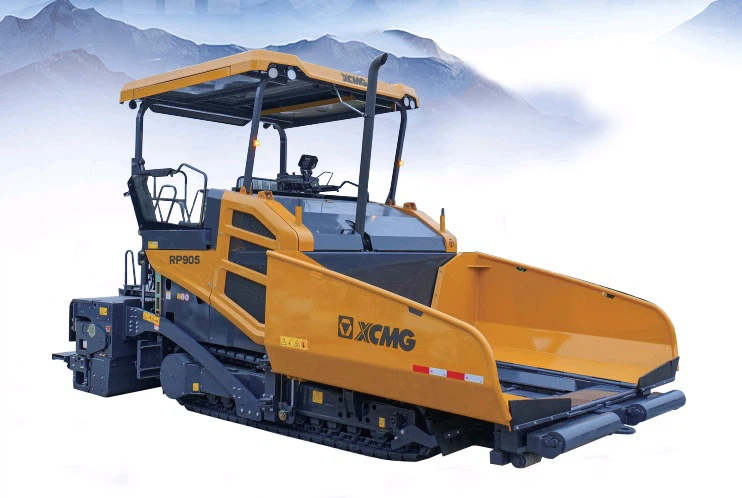

Large Asphalt Paver
Large Asphalt Paver is a heavy-duty machine used in road construction to lay asphalt surfaces in large projects such as highways, airports, parking lots, etc. Designed for high productivity and efficiency, these pavers can lay asphalt materials quickly and precisely.
Product Description
Large Asphalt Paver is a heavy-duty machine used in road construction to lay asphalt surfaces in large projects such as highways, airports, parking lots, etc. Designed for high productivity and efficiency, these pavers can lay asphalt materials quickly and precisely.
Main dimensions
Main Specifications
|
Item |
Unit |
E500BTV E600BTV |
|
Basic paving width |
m |
2.5~5 3.0-6 |
|
Maximum paving width |
m |
8.0 9.0 |
|
Maximum paving thickness |
mm |
450 |
|
Maximum operating speed |
m/min |
25 |
|
Maximum traveling speed |
km/h |
4 |
|
Theoretical productivity |
t/h |
900 |
|
Hopper capacity |
t |
15 |
|
Gradeability |
% |
20 |
|
Flatness (standard deviation)** |
mm |
1.2 |
|
Cross slope error |
% |
±0.2 |
|
Arch adjustment range |
% |
-1.5-+4.5 |
|
Diesel engine model |
/ |
QSB6.7 |
|
Rated power of diesel engine |
kW |
158 |
|
Rated speed of diesel engine |
r/min |
2000 |
|
Distributing speed |
r/min |
0-110 |
|
Conveying speed |
m/min |
0-34 |
|
Vibrating speed |
r/min |
0-1800 |
|
Vibrating amplitude |
mm |
4 |
|
Vibration frequency |
Hz |
- |
|
Overall weight |
t |
22.5-24.0 23.0~24.5 |
|
Transportation outline dimensions |
mm |
6982X2550X3080 6982X3000X3080 |
|
Diesel tank capacity |
L |
240 |
|
Hydraulic oil tank capacity |
L |
260 |
Features
The left and right driving devices run separately, the microcomputer control is adopted and the constant-speed automatic control technology is utilized to control the paving speed.
The mature and reliable DCEC QSB6.7 diesel engine is installed, with the strong power output up to 158kW.
The three-in-one compound radiator is adopted and the fan speed is adjusted automatically with the water temperature to ensure that the machine can work continuously for long time at a high temperature of 50 C Four sets of full hydraulic systems that run separately are adopted for the conveying and distributing; the material pad control technology (or ultrasonic) is adopted for conveying, and the ultrasonic sensing control technology is adopted for distributing; the material level is controlled automatically to ensure stable material level in the chute.
Advantage
1. It has a range of sensors to ensure the precision and accuracy of asphalt laying, which helps to minimize waste, reduce costs and improve efficiency
2. It is equipped with an adjustable screed to achieve different thicknesses, allowing it to adapt to different types of construction projects.
3. It has many safety features, making it a reliable and safe machine to operate.
4. The cab is well designed, spacious, with clear sight lines, ergonomic controls and easy-to-read display screens.
5. Operators can work comfortably and efficiently without compromising safety, reducing the risk of accidents and injuries on site.
